- 100W Output Power
- Strong Power
- 100,000 Hours
- Long Working Life
- Power Consumption≤1KW
- Energy-saving
- Auto-focusing
- Precise Positioning
- Intelligent Control
- Full-automation
- Metal Plate
- light-weight and High Strength
Technical Parameter
| Marking Area | 100mm X 100mm |
|---|---|
| Max. Marking Speed | 7000mm/s |
| Min. Product Diameter | 130mm |
| Max. Product Diameter | 650mm |
| Power Supply | 220V 10A 50Hz |
| Laser power | 50W/100W |
| Power Consumption | < 1000W |
| Running Temperature | 0-40℃ |
| Running Humidity | 5%-75% |
| Overall Weight | 400KG |
| Machine Dimensions | 1190mm x 700mm x 1890mm |
| Overall Structure | Metal Plate |

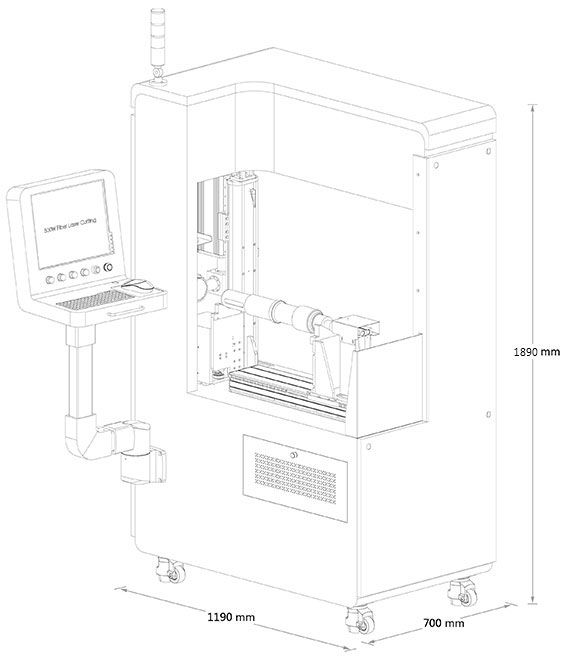

Size
length：1190mm
width：700mm
height：1890mm
Equipment Resolution
Supporting Format
Vector format
- AI
- PLT
- DXF
- JPC
- SVG
- NC, G
- BOT
- DST
Bitmap format
- BMP
- JPG
- JPEG
- GIF
- TGA
- PNG
- TIF
- TIFF
Package Contents
Equipment/Laser protective goggles/Lens Cleaning Paper/Testing Black Paper/Dimming Metal Card/Tooling
